Applicable To Aviation, Automobile, Industry, Electric Power, Telecommunication And Military Industry, Etc.
Ensures Smooth, Continuous And Reliable Current Flow
Streamline The Assembly Process Of Electronic Products And Improve Productivity
Quick Replacement Of Failed Components
It Is Possible To Update The Meta-Components, Replacing The Old Ones With New, More Complete Ones
More Design Options When Designing And Integrating New Products
Mate and unmate specimens for 10 cycles at maximum rate of 600 cycles per hour. Note: Shall meet visual requirements, show no physical damage and shall meet requirements of additional tests as specified in Test Sequence in Figure 3 of TE product document 108-1329.
Operating at temperatures -40°C to +125°C for gold plated, -40°C to +105°C for tin plated

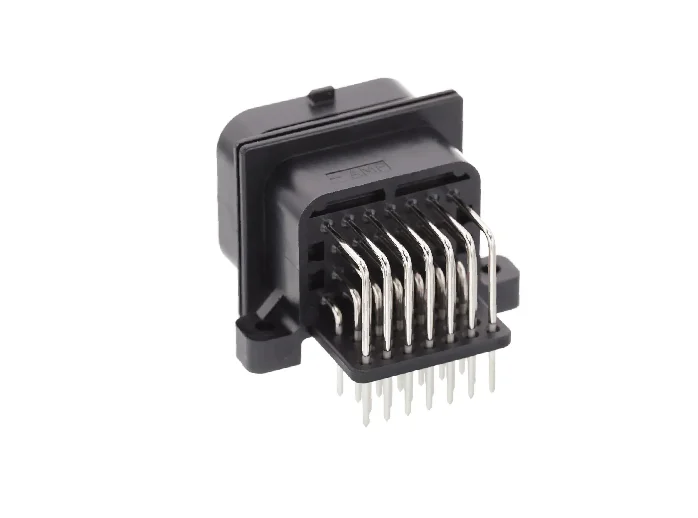

Amp Superseal 1.0 Connector Key Features:
Accepts contact size 1.3 mm (up to 17 amps gold, up to 8 amps tin)
16-20 AWG (1.25-0.50 mm2)
8, 14, 23, and 35 cavity arrangements
PCB mount
Rectangular, thermoplastic housing
Integrated latch for mating
Integrated wedgelock confirms contact alignment and retention
Amp Superseal 1.0 connectors provide reliability and performance on the engine or transmission, under the hood, for power control units, bulkheads, on the chassis, or in the cab. AMPSEAL connectors offer field proven reliability and rugged quality. AMPSEAL are designed for cable-to-board harsh environment applications.
Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle
Amp Superseal 1.0 connectors provide rugged reliability and environmental sealing. They are available in cable plugs and PCB mount headers that are designed to stand up to high-temperature underhood applications.
