It Features Advanced Contact Technology That Minimizes Signal Attenuation And Crosstalk
With A Remarkable High - Current - Carrying Capacity,Suitable For Power - Hungry Devices
It Can Withstand Mechanical Stresses Such As Vibration, Shock, And Impact
Easily Integrated Into Different Electrical Systems,Suitable For A Variety Of Industries
Featuring A Reliable And Secure Connection Mechanism, Ensures A Stable Connection
It Allows For Efficient Use Of Space In Crowded Electrical Enclosures Or In Small - Scale Electronic Devices
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
IP68 rating
HD10 Connector Key Features:
Accepts contact sizes 4 (100 amps), 12 (25 amps), and 16 (13 amps)
6-20 AWG (16.00-0.50 mm2)
3, 4, 5, 6, and 9 cavity arrangements
In-line, flange, or PCB mount
Circular, thermoplastic housing
Coupling ring for mating

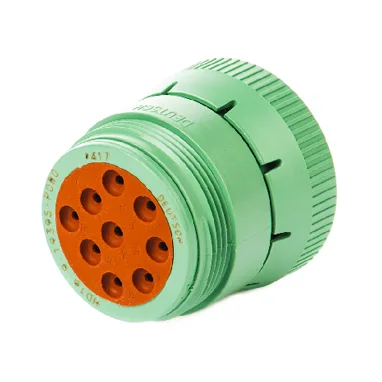

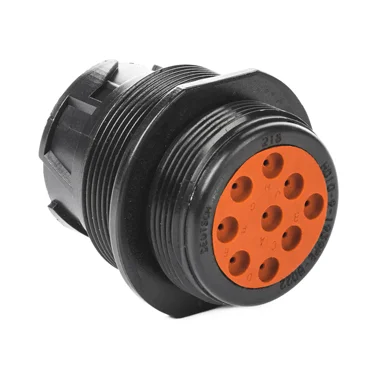

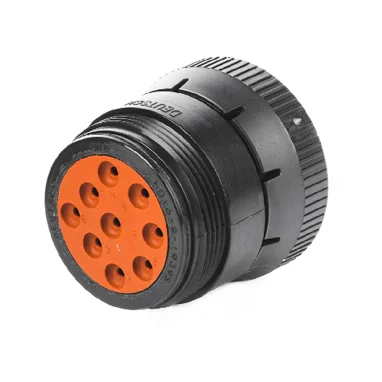

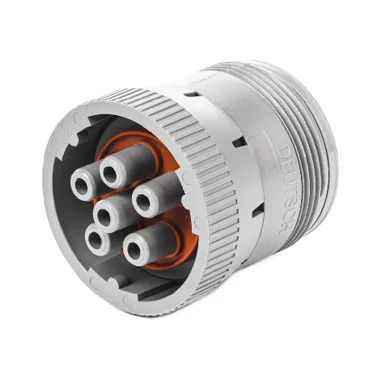

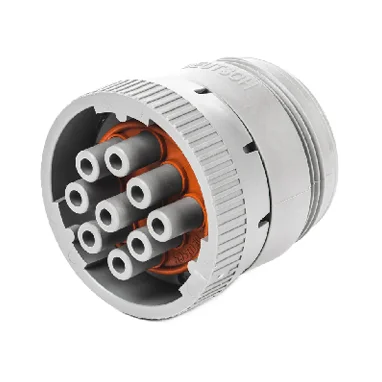

DEUTSCH HD10 connectors provide reliability and performance on the engine or transmission, under the hood, on controllers, as a data link connector for diagnostics, on the chassis, or in the cab. HD10 connectors offer field proven reliability and rugged quality. The HD10 design strengths include optional flange mounting, multi-pin arrangements, lower costs, and design flexibility. HD10 connectors offer the designer the ability to use multiple size contacts within a single shell. Several accessories are available including backshells, strain relief, and dust caps.
Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle
DEUTSCH HD10 environmentally sealed connectors are designed for cable to cable and cable to board applications. The HD10 connectors are used in harsh environment applications where even a small degradation in connection may be critical.
