Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
Current leakage less than 2 milliamps at 1500 volts AC.
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.

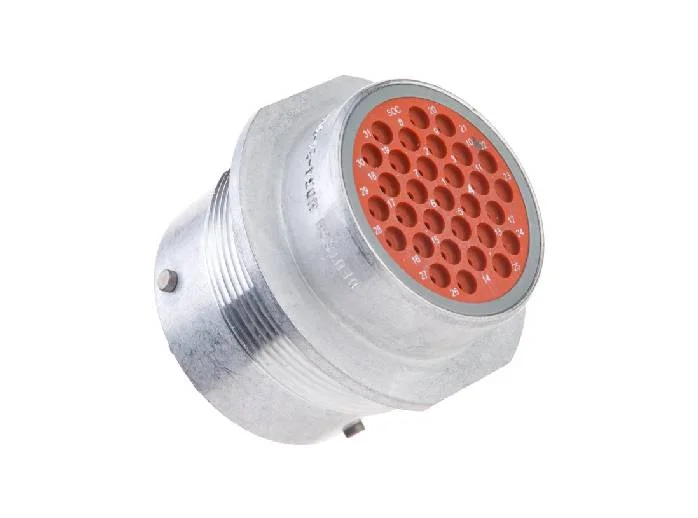

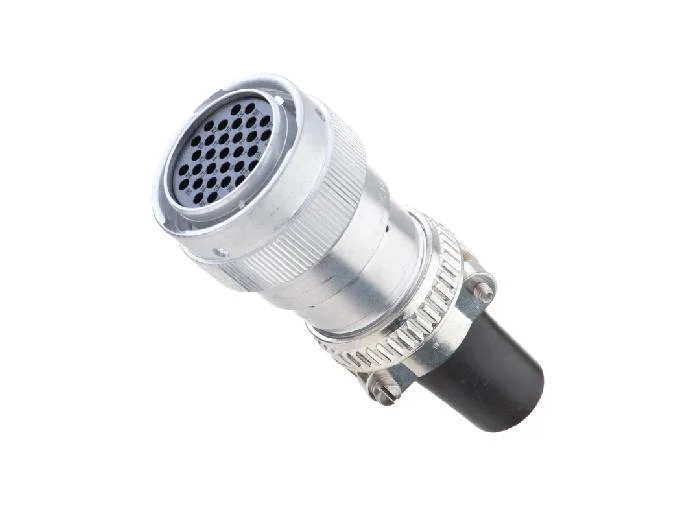

HD30 Connector Key Features
Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
6-22 AWG (13.00-0.35 mm2)
2, 6, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavity arrangements
In-line or flange mount
Circular, aluminum housing
Coupling ring for mating
DEUTSCH HD30 connectors provide reliability and performance on the engine or transmission, under the hood, for power control units, bulkheads, on the chassis, or in the cab. HD30 connectors offer field proven reliability and rugged quality. The HD30 design strengths include optional flange mounting, multi-pin arrangements, lower costs, and design flexibility. HD30 connectors offer the designer the ability to use multiple size contacts within a single shell. Several accessories are available including backshells, strain relief, and dust caps.
DEUTSCH HD30 environmentally sealed connectors are designed for cable to cable applications. The HD30 connectors are used in harsh environment applications where even a small degradation in connection may be critical.
