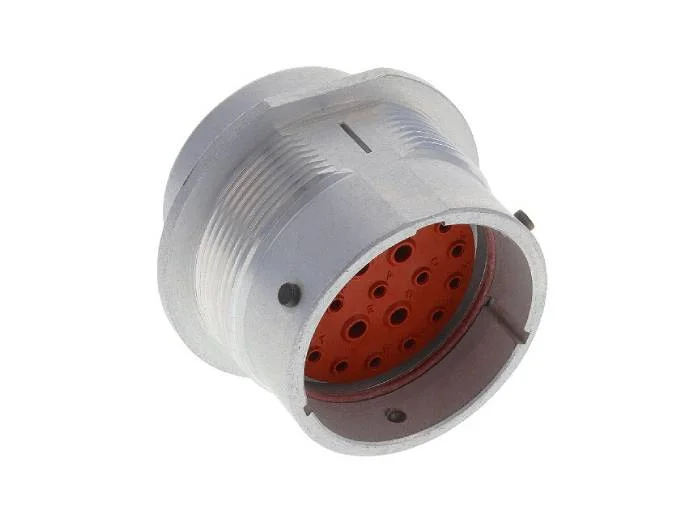

Housing for Male Terminals, Wire-to-Wire, 21 Position, Sealable, Wire & Cable, Power & Signal, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid
Deutsch metal HD30 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD30 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism. These rugged connectors with seals fabricated from tear resistant, high temperature silicone, and a rear grommet, protect the contacts from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations that can contaminate or damage electrical connections and systems.
Deutsch HD30 connectors are specifically designed for critical applications in harsh environments where dust, dirt, moisture, salt spray, and rough terrain The Deutsch HD30 Series connectors are constructed from a metal shell developed to meet the needs of the heavy duty equipment and transportation industries. the HD30 Series features include quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.
| OEM Part Number | HD34-24-21PE | Material | Housing:PBT+G,PA66+GF; Terminal:Copper Alloy, Brass, Phosphor Bronze. |
| Product Series | HD30 series | Operating Temperature range | -40℃~120℃ |
| Cavities | 21 | Wire Size | / |
| Male/Female | Male | MOQ | Small order can be accepted. |
| Sealed or Unsealed | Sealed | Delivery Time | Enough stock and strong production capacity ensure timely delivery. |
| Color | Silver | Packaging | 100,200,300,500,1000PCS per bag with label,export standard carton. |
| Required Wedgelock | / | Design Ability | We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request |
