Housing for Male Terminals, Wire-to-Wire, 14 Position, Sealable, Black, Wire & Cable, Power & Signal, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid
Deutsch plastic shell HDP20 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD20 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism Fabricated from tear resistant, high temperature silicone, and a rear grommet, the HD20 contacts are protected from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations.
The HDP20 Series is a heavy duty rated, environmentally sealed, composite shell, multi-pin connector. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. HDP20 features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.

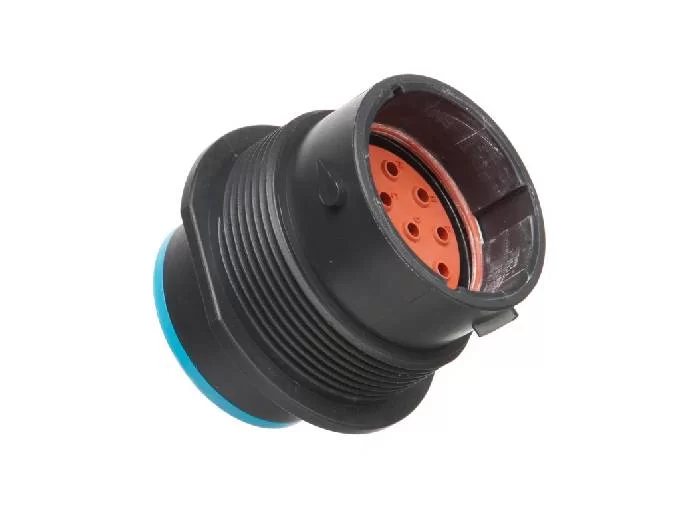

This black receptacle takes 14 size 16 pins, has a shell size of 18, and has an E Seal. The size 16 pin has a rating of 13 amps of continuous current. This connector can be used in a flange or in-line setting.
| OEM Part Number | HDP24-18-14PE | Material | Housing:PBT+G,PA66+GF |
| Product Series | HDP20 Series | Operating Temperature range | -40℃~120℃ |
| Cavities | 14 | Wire Size | 14, 16, 18, 20 |
| Male/Female | Male | MOQ | Small order can be accepted. |
| Sealed or Unsealed | Sealed | Delivery Time | Enough stock and strong production capacity ensure timely delivery. |
| Color | Black | Packaging | 100,200,300,500,1000PCS per bag with label,export standard carton. |
| Required Wedgelock | / | Design Ability | We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request |
